java对象和xml对象相互转换的工具类整理

依赖第三方sdk

1
2
3
4
5
6
7
8
9
10
11
<!--解析xml报文-->
	<dependency>
		<groupId>dom4j</groupId>
		<artifactId>dom4j</artifactId>
		<version>1.6.1</version>
	</dependency>
	<dependency>
		<groupId>jaxen</groupId>
		<artifactId>jaxen</artifactId>
		<version>1.1-beta-6</version>
	</dependency>

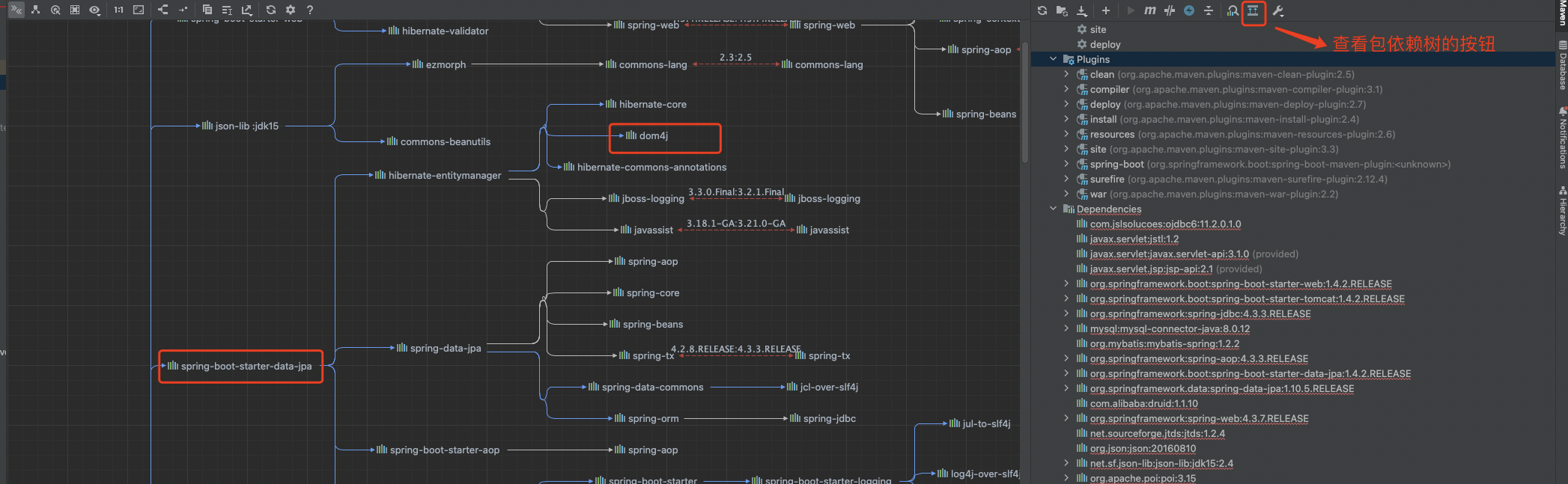

项目由于原先引入了spring-boot-starter-data-jpa,所以dom4j的jar包原先已经引入了,只要新引入jaxen的jar包即可,如图:

将xml文件对象转换成fastjson对象代码逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
XmlUtil工具类

package com.geping.etl.utils;

import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Element;
import org.dom4j.io.SAXReader;

import java.io.File;
import java.util.Arrays;
import java.util.Iterator;
import java.util.List;

/**
 * @description: xml转换工具类
 * @date: 2022/8/23
 */
@Slf4j
public class XmlUtil {

    //需要将xml在该标签节点下面的转换成数组JSONArray对象的集合
    static List complexNodeNames = Arrays.asList("REC","FILENAME","FORMAT","ERR");

    /**
     * @description: xml文件转换成fastjson对象，从对应node结点开始
     * @param: [file, node]
     * @return: com.alibaba.fastjson.JSONObject
     *
     * @date: 2022/8/23
     */
     //主入口方法,将xml格式的文件转换成JSONObject对象,node是xml开始解析的节点标签
     //为空就从根目录节点开始解析
    public static JSONObject xmlToJson(File file, String node){
        JSONObject result = new JSONObject(true);
        SAXReader xmlReader = new SAXReader();
        try {
            Document document = xmlReader.read(file);
            Element element;
            if(StringUtils.isNotBlank(node)){
                element = (Element) document.selectSingleNode(node);
            }else{
                element = document.getRootElement();
            }
            // 遍历子节点
            Iterator<Element> iterator = element.elementIterator();
            while (iterator.hasNext()) {
                Element child = iterator.next();
                getNodes(child, result);

            }
        } catch (DocumentException e) {
            log.error("xmlToJson error, fileName = {}, node = {}", file.getName(), node);
        }
        return result;
    }

    /**
     * 获取当前节点的名称、文本内容和属性
     * @param element 元素
     */
    private static void getNodes(Element element, JSONObject jsonObject) {
        //当前节点名称
        String elementName = element.getName();
        //判断节点名称是否为复数节点，如果为复数节点，加入JSONArray
        Object objectValue = checkElementName(elementName, element, jsonObject);
        jsonObject.put(elementName, objectValue);
        //递归遍历当前节点所有的子节点
        List<Element> elements = element.elements();
        if (!elements.isEmpty()) {
            JSONObject object = new JSONObject(true);
            //遍历所有一级子节点
            for (Element child : elements) {
                //递归
                getNodes(child, object);
            }
            if(complexNodeNames.contains(elementName)){
                JSONArray jsonArray = jsonObject.getJSONArray(elementName);
                if(jsonArray == null){
                    jsonArray = new JSONArray();
                }
                jsonArray.add(object);
                jsonObject.put(element.getName(), jsonArray);
            }else {
                jsonObject.put(element.getName(), object);
            }
        }
    }

    private static Object checkElementName(String elementName, Element element, JSONObject jsonObject) {
        if(complexNodeNames.contains(elementName)){
            JSONArray jsonArray = jsonObject.getJSONArray(elementName);
            if(jsonArray == null){
                jsonArray = new JSONArray();
            }
            if(element.elements().isEmpty()) {
                jsonArray.add(element.getText());
            }
            return jsonArray;
        }
        return element.getText();
    }

单元测试类: XmlUtilTest
测试方法:
@Test
public void XmlToJSONObjectTest(){
    File file = new File(this.getClass().getResource("").getPath()+"SACJP9131000071788122081501ERR.xml");
    JSONObject jsonObject = XmlUtil.xmlToJson(file, null);
    System.out.println(jsonObject.toJSONString());
}

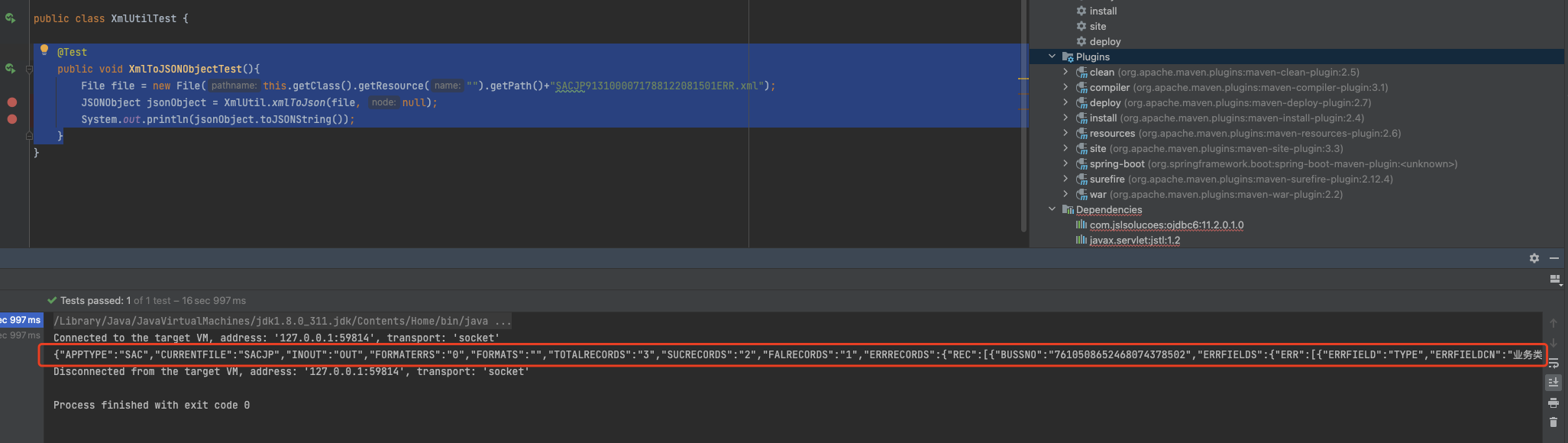

测试结果见下图:

将javaBean对象转换成xml对象文件

CreateReportFileServiceImpl 生成报文service实现类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101


//对应方法
public void beanToXml(String fatherElement, List objects, String filePath) throws IOException, IllegalAccessException {
    try {
        // 1、创建document对象
        Document document = DocumentHelper.createDocument();

        // 2、创建根节点fatherElement
        Element fatherStore = document.addElement("MSG");

        Element childStore1 = fatherStore.addElement("APPTYPE");
        childStore1.setText("SAC");

        Element childStore2 = fatherStore.addElement("CURRENTFILE");
        childStore2.setText(fatherElement);

        Element childStore3 = fatherStore.addElement("INOUT");
        childStore3.setText("IN");

        Element childStore4 = fatherStore.addElement("TOTALRECORDS");
        childStore4.setText(String.valueOf(objects.size()));

        Element childStore5 = fatherStore.addElement("RECORDS");


        // 3.循环向fatherElement根节点中添加子节点instanceName
        for (int i = 0; i < objects.size(); i++) {
            //获取实例节点目录
            Element instanceElement = childStore5.addElement("REC");

            //遍历实例属性节点
            for(Field field : objects.get(i).getClass().getDeclaredFields()){
                field.setAccessible(true);
                //获取实例属性名称
                String fieldName = field.getAnnotation(XColumn.class).desc();
                Element fieldElement = instanceElement.addElement(fieldName);
                //判断属性注解类型
                int type = field.getAnnotation(XColumn.class).type();
                //获取实例属性值
                if(type == DataType.type_date) {//日期类型，替换-
                    fieldElement.setText(field.get(objects.get(i)) != null ? field.get(objects.get(i)).toString().replace("-", "") : "");
                }else{
                    fieldElement.setText(field.get(objects.get(i)) != null ? field.get(objects.get(i)).toString() : "");
                }
            }
        }

        // 5、设置生成xml的格式
        OutputFormat format = OutputFormat.createPrettyPrint();
        // 设置编码格式
        format.setEncoding("UTF-8");
        // 6、生成xml文件
        File file = new File(filePath);
        XMLWriter writer = new XMLWriter(new FileOutputStream(file), format);
        // 设置是否转义，默认使用转义字符
        writer.setEscapeText(false);
        writer.write(document);
        writer.close();
    } catch (Exception e) {
        log.error("beanToXml error, filePath = {}, e = {}", filePath, e);
        throw e;
    }
}

//单元测试类: XmlUtilTest
//测试方法:
@Test
public void JavaBeanToXmlTest() throws IOException, IllegalAccessException {
    CreateReportFileServiceImpl createReportFileService = new CreateReportFileServiceImpl();
    List<SacjpEntity> sacjpEntities = new ArrayList<>();
    SacjpEntity sacjpEntity = new SacjpEntity();
    sacjpEntity.setAcctNo("1111");
    sacjpEntity.setActionDesc("2222");
    sacjpEntity.setBranchName2("33333");
    sacjpEntity.setBusCode("4444444");
    sacjpEntity.setCustCod("555555");
    sacjpEntity.setCustContact("6666666");
    sacjpEntity.setCustNm("77777777");
    sacjpEntity.setBranchName2("88888888");
    sacjpEntity.setCustContact("99999999");
    sacjpEntity.setDealAmount("333333");
    sacjpEntity.setMac("343434343");

    SacjpEntity sacjpEntity1 = new SacjpEntity();
    sacjpEntity1.setAcctNo("123");
    sacjpEntity1.setActionDesc("123");
    sacjpEntity1.setBranchName2("123");
    sacjpEntity1.setBusCode("123");
    sacjpEntity1.setCustCod("123");
    sacjpEntity1.setCustContact("123");
    sacjpEntity1.setCustNm("123");
    sacjpEntity1.setBranchName2("123");
    sacjpEntity1.setCustContact("123");
    sacjpEntity1.setDealAmount("123");
    sacjpEntity1.setMac("123");
    sacjpEntities.add(sacjpEntity);
    sacjpEntities.add(sacjpEntity1);

    createReportFileService.beanToXml("测试文件", sacjpEntities, "11.xml");
}

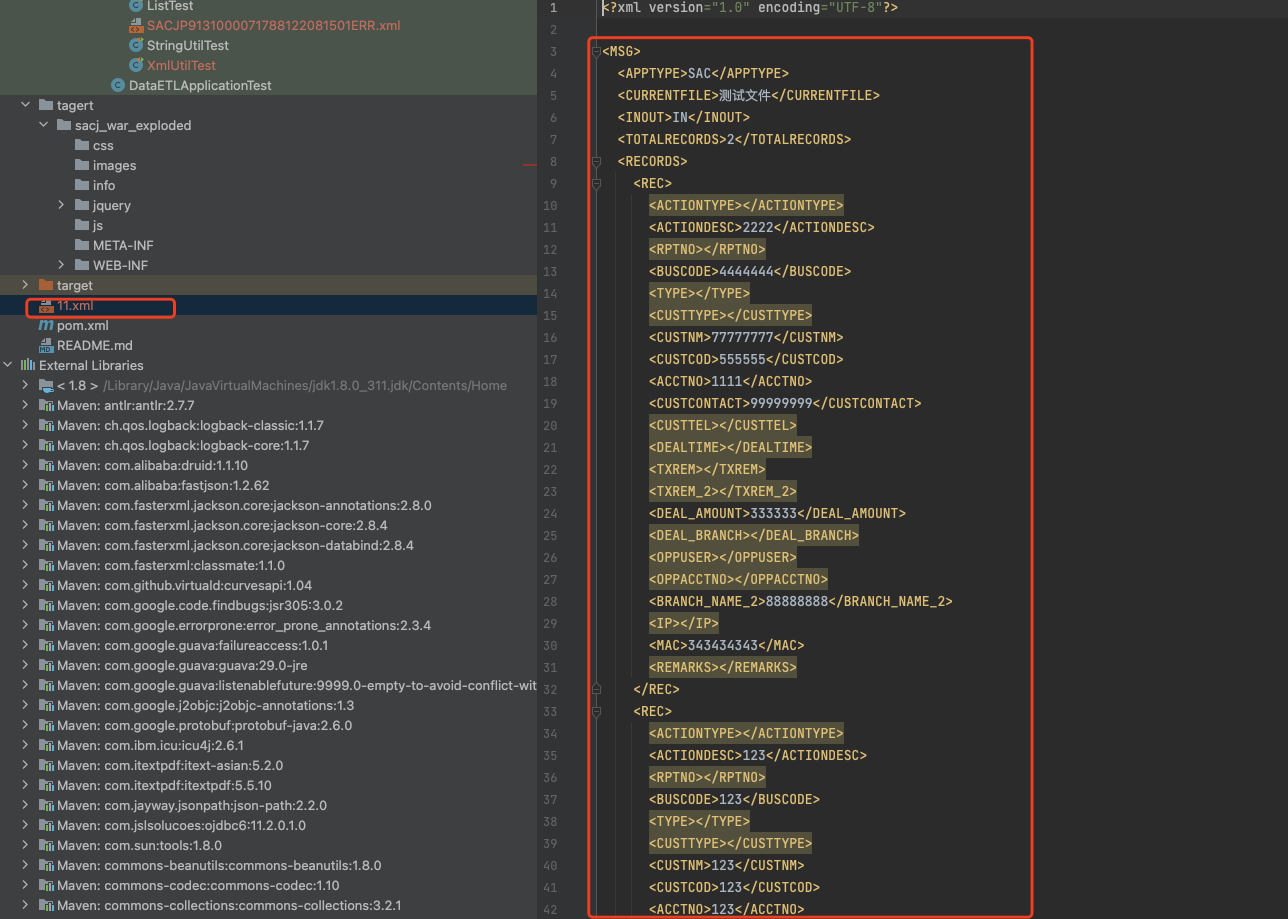

测试结果见下图:

遇到的问题:

执行Xml转换成fastjson代码遇到的异常:java.lang.NoClassDefFoundError: org/jaxen/JaxenException的异常

原因:找不到JaxenException异常类.因为jaxen的jar包没有引入到项目中,把jaxen引入即可.

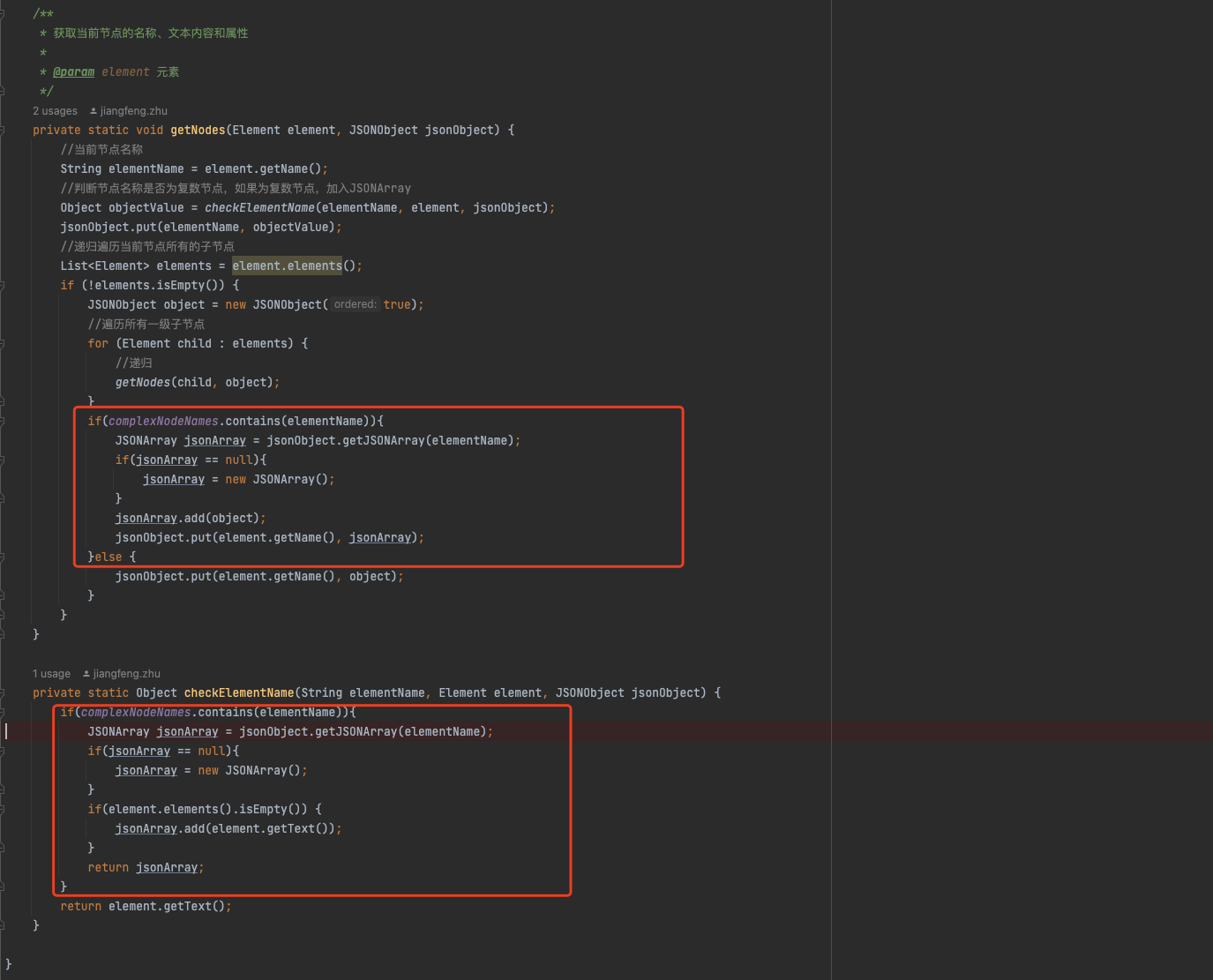

xml文件有多个重复标签时需转换成jsonArray数组的问题,加入如下图红色框里面的逻辑处理代码即可解决

参考博客:

https://codeantenna.com/a/FjxTwSUpnS –代码实现参考博客
